Structured cabling follows a standardized architecture with labeled, organized pathways. Unstructured cabling, on the other hand, takes a more ad hoc approach, connecting devices as needs arise without a formal design plan. Both methods get devices online, but they differ significantly in scalability, troubleshooting efficiency, and total cost of ownership. Understanding those differences is critical before you commit budget and labor to a build.

At Trindom Global, we design, build, and install cabling infrastructure for hospitals, commercial facilities, government agencies, and multifamily properties. Our teams have seen firsthand how the right cabling strategy simplifies future upgrades, and how the wrong one creates bottlenecks that compound over time. This article breaks down the pros, cons, and costs of each approach so you can make a confident, informed decision for your next infrastructure project.

Why cabling structure affects performance and costs

The physical layout of your cables directly determines how fast your network responds, how easily your team identifies faults, and how much you spend over the life of the installation. When cables run without a plan, signal interference increases, documentation becomes unreliable, and locating a single faulty connection can consume hours of labor. A structured approach removes most of those variables by building predictability into the design from day one.

How signal quality degrades without organization

Cable routing plays a bigger role in performance than most people expect. When cables run parallel to power lines, bundle tightly without separation, or exceed rated bend radii, signal attenuation increases and error rates climb. Ethernet standards like TIA-568, published by the Telecommunications Industry Association, set maximum segment lengths and installation requirements specifically to prevent these degradation patterns.

Poor cable management is one of the leading causes of intermittent network faults that are difficult and expensive to diagnose.

Structured cabling enforces those standards through a defined architecture of horizontal runs, patch panels, and backbone connections. That consistency keeps signal quality within spec across every port in the building.

Where costs accumulate in unplanned installations

Labor is your biggest cabling expense, and unstructured installations multiply that cost over time. When technicians add drops reactively, they often run new cables over existing ones, bypass proper pathways, and skip labeling. The result is a system that works initially but becomes increasingly difficult to manage. Troubleshooting an unlabeled network with dozens of unmarked cables can easily consume a full day of labor for a problem that takes minutes to fix in a well-documented system.

Understanding the full scope of structured cabling vs unstructured cabling ultimately comes down to upfront investment versus repeated, reactive spending that rarely appears in initial project budgets.

What structured cabling includes in a modern building

Structured cabling organizes your entire network infrastructure into a defined hierarchy of components that work together as one system. Rather than running cables point-to-point between devices, it establishes standardized pathways and connection points that any qualified technician can follow, document, and extend without disrupting existing service.

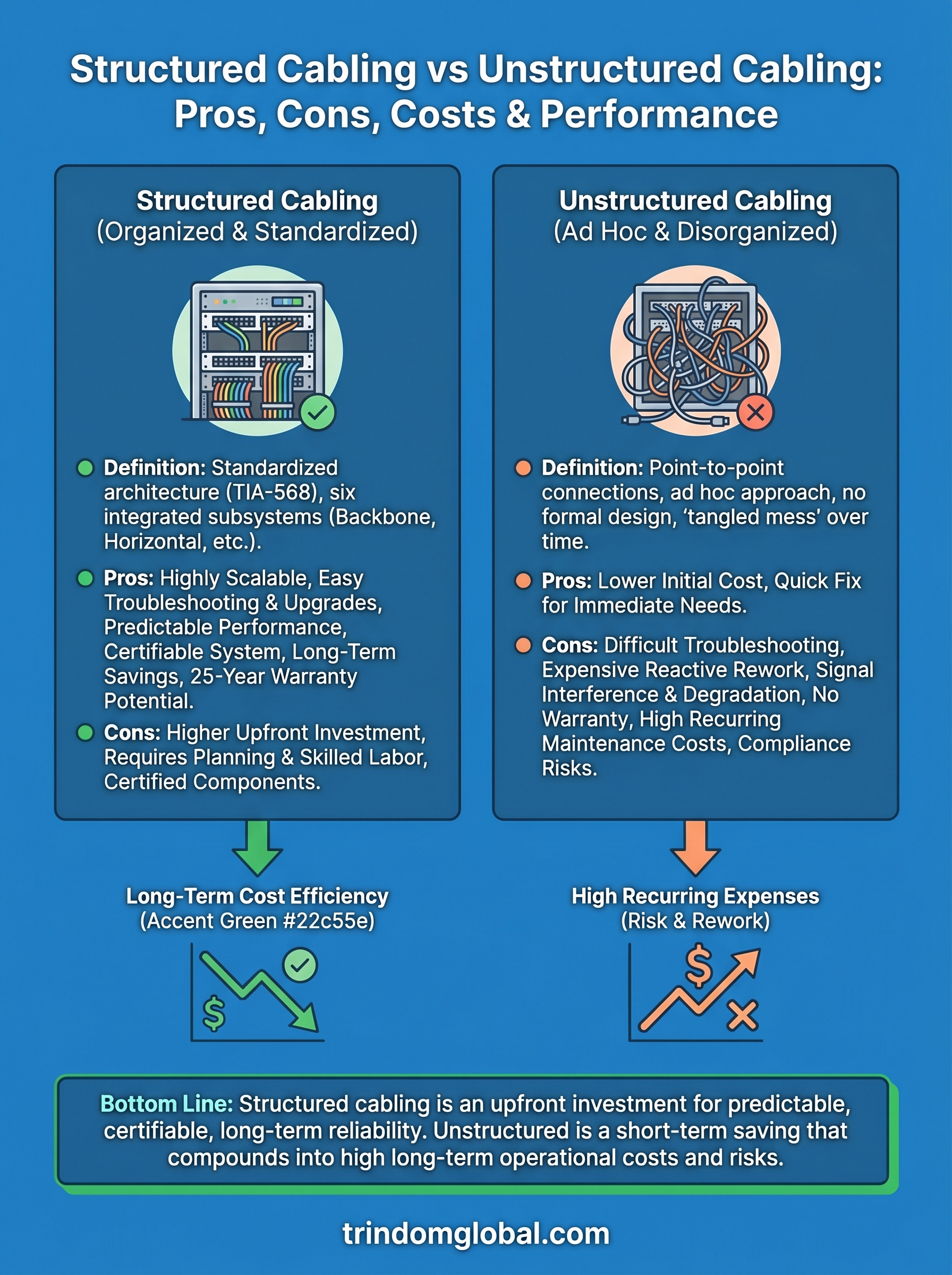

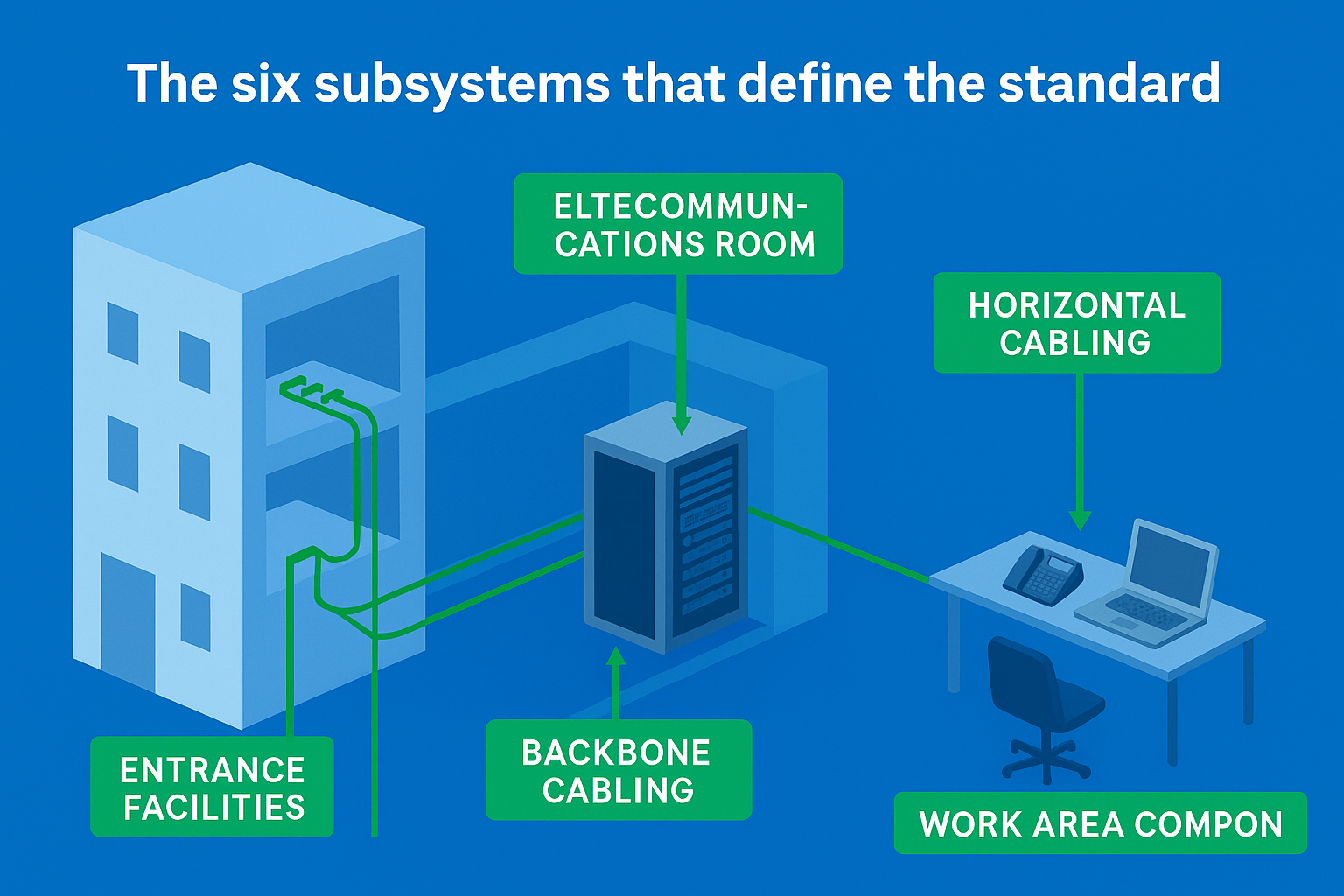

The six subsystems that define the standard

The TIA-568 standard divides structured cabling into six subsystems: entrance facilities, equipment rooms, backbone cabling, telecommunications rooms, horizontal cabling, and work area components. Each subsystem has a specific role and defined specifications that keep the overall system consistent and certifiable.

When every subsystem follows the same standard, you can test, certify, and warranty your entire cabling plant as a unified infrastructure.

How each layer supports the next

Your backbone cabling connects floors and buildings, while horizontal runs carry signal from telecommunications rooms to individual work area outlets. Patch panels in each telecommunications room give you a central point to move or add connections without touching the horizontal runs. This layered approach means adding new workstations or upgrading equipment requires minimal disruption and no guesswork about where cables terminate. That predictability is what separates structured cabling vs unstructured cabling at a fundamental design level.

What unstructured cabling looks like and risks

Unstructured cabling typically grows one connection at a time. A technician runs a cable to solve an immediate need, skips the labeling, and moves on. Over months or years, that process repeats until your network closet resembles a tangled mass of unlabeled runs with no clear documentation of where anything goes.

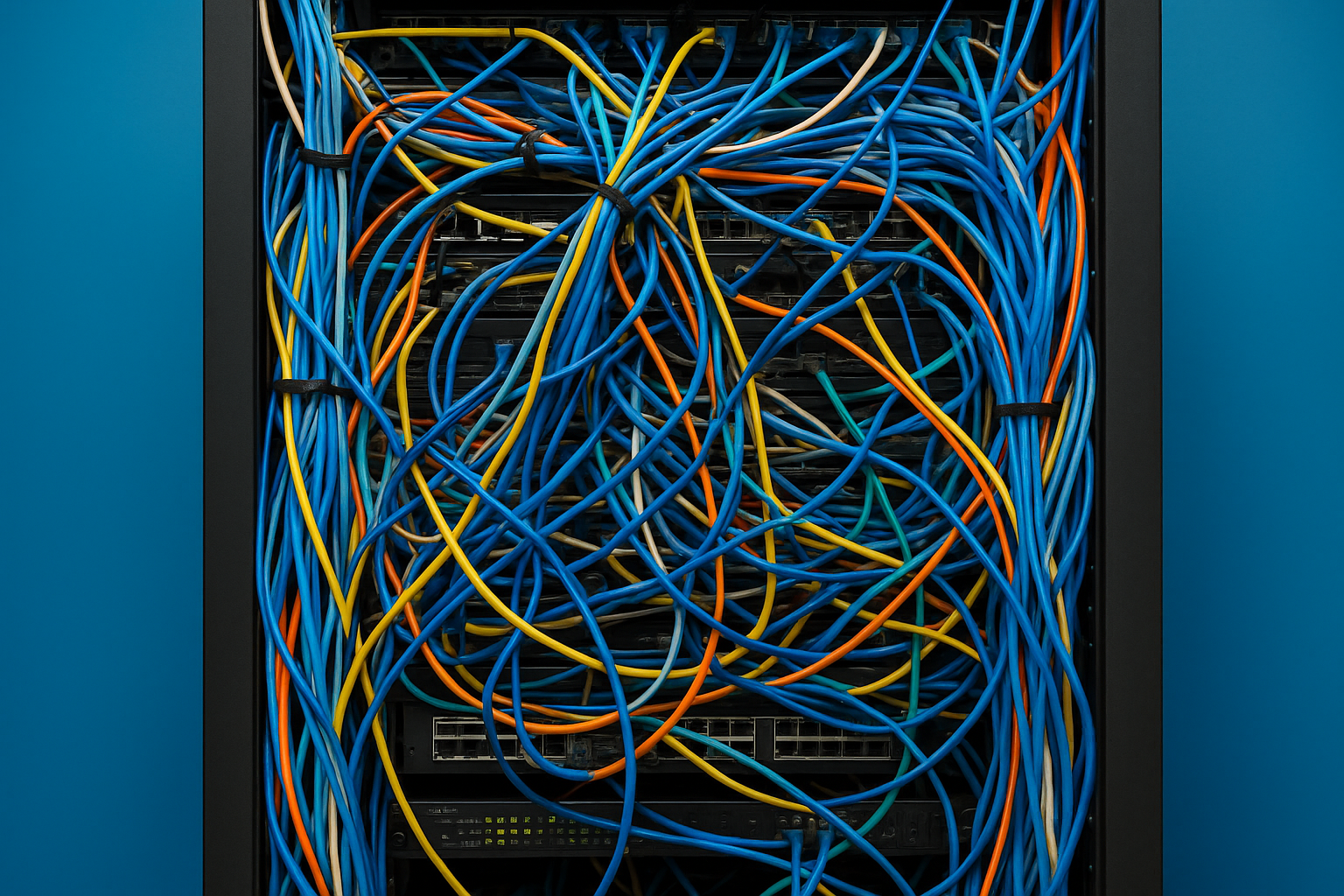

Common patterns in unstructured installations

You will usually spot unstructured cabling by a few telltale signs: cables zip-tied to other cables with no separation, unlabeled patch cords looped through racks in no consistent order, and multiple cable generations layered on top of each other. Devices get connected, but nobody documents which cable feeds which port or room, making future changes a guessing exercise.

When you cannot trace a cable without pulling on it, every move-add-change becomes a risk to live connections.

The risks that build over time

The core difference in structured cabling vs unstructured cabling comes down to control. Unstructured systems create signal interference, bottlenecks, and compliance gaps that compound with each new addition. In regulated environments like hospitals or government facilities, undocumented infrastructure can also trigger audit failures. The longer an unstructured system runs, the more labor it takes to untangle, recertify, and bring back up to standard.

Pros, cons, and real costs over time

Comparing structured cabling vs unstructured cabling on cost requires looking beyond the installation invoice. Structured cabling costs more upfront because it requires planning, certified components, and skilled labor. Unstructured cabling cuts those initial line items but shifts the expense into recurring troubleshooting, reactive repairs, and eventual rework.

Structured cabling: upfront investment, long-term savings

Structured cabling installations typically run higher per-drop costs due to quality hardware, certification testing, and documentation. That investment pays back quickly because moves, adds, and changes take minutes instead of hours, and your team spends far less time diagnosing faults. Most certified installations also carry manufacturer warranties that cover both parts and labor for years.

A certified structured cabling system can carry a 25-year warranty, while an unstructured installation carries none.

Unstructured cabling: low initial cost, high recurring expense

Unstructured cabling looks affordable until you factor in labor hours spent troubleshooting unlabeled runs, the cost of adding drops without disrupting live connections, and eventual recertification before any major upgrade.

Those expenses accumulate silently across your maintenance and operations budget. By the time most organizations quantify the total spend, it far exceeds what a structured build would have cost originally.

How to choose and plan your next cabling approach

The decision between structured cabling vs unstructured cabling depends on your building size, budget timeline, and how often you expect the network to change. If you manage a facility with multiple floors, high user density, or plans for growth, structured cabling is the right choice in nearly every scenario.

The more your network needs to scale or change, the more structured cabling pays for itself.

Key questions to ask before you start

Before you commit to a design, audit your existing infrastructure and define where you need to be in five years. Answer these questions to frame your planning:

• How many active drops and users does the facility currently support?
• Do you expect significant moves, adds, or changes within the next three years?
• Are you operating in a regulated environment like healthcare or government?
• What is your tolerance for downtime during troubleshooting or upgrades?

Your answers directly shape the scope and type of installation your project requires. A small office with stable headcount may tolerate a simpler approach, but any environment with growth plans or compliance obligations benefits from a fully structured build.

Next steps for a cleaner network

The choice between structured cabling vs unstructured cabling is not just a technical decision; it shapes how much time and money your organization spends on network operations for the next decade. Structured cabling gives you a certifiable, documented system that scales with your needs, while unstructured approaches trade short-term savings for long-term complexity and reactive labor costs. If your facility is growing, regulated, or simply tired of troubleshooting unlabeled cable runs, the path forward is clear.

Planning your cabling project the right way starts with an honest assessment of your current infrastructure and your three-to-five year growth plans. A qualified installation partner can audit your existing system, identify gaps, and design a solution that fits your facility and budget. Contact the Trindom Global team to discuss your structured cabling project and get expert guidance from technicians who have built reliable network infrastructure across healthcare, government, and commercial environments.

The post Structured Cabling vs Unstructured Cabling: Pros, Cons, Costs appeared first on Trindom Global.

But what does an IT project manager actually do day to day? The role goes far beyond scheduling meetings and updating spreadsheets. It involves technical decision-making, stakeholder communication, risk management, and budget oversight, often all before lunch. For organizations in healthcare, government, hospitality, or multifamily housing, the stakes are even higher because downtime and delays carry real operational consequences.

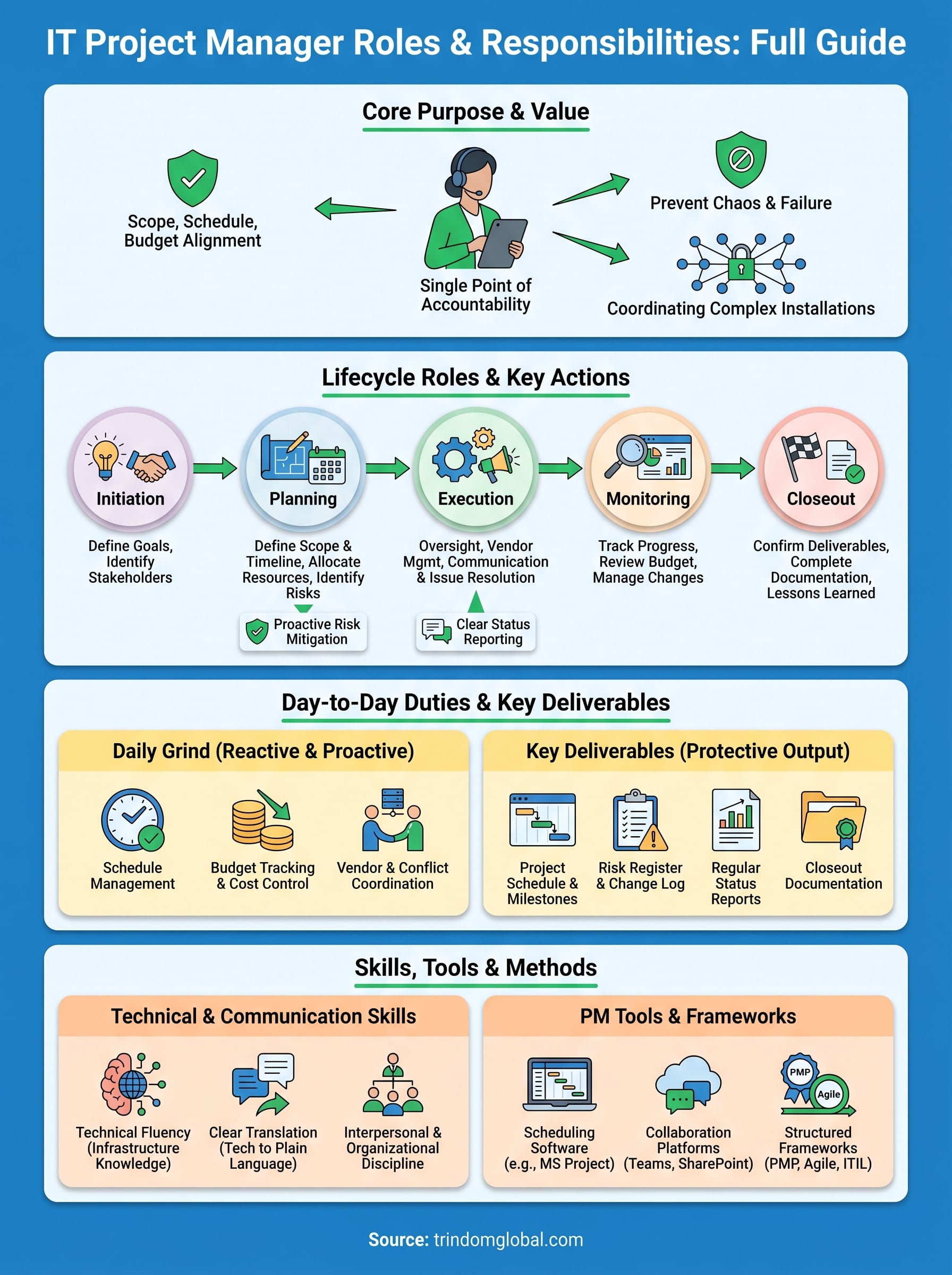

This guide breaks down the core functions, daily duties, and essential skills that define the IT project manager role. Whether you’re writing a job description, preparing for an interview, or simply trying to understand what this position demands, you’ll walk away with a complete, practical picture of what the job requires and why it matters.

Why IT project managers matter in IT work

IT projects fail at a high rate, and poor project management is consistently among the top reasons. When you’re deploying network infrastructure across a hospital floor, installing RF systems in a hotel, or completing a government buildout with strict compliance requirements, the margin for error is narrow. An IT project manager is the single point of accountability who keeps scope, schedule, and budget aligned from kickoff to closeout.

The operational cost of skipped coordination

When no one owns the coordination role, small miscommunications become expensive problems. A cable technician shows up before the equipment arrives. A vendor delivers hardware to the wrong floor. A hospital unit loses network access during a critical shift because no one accounted for cutover timing in the installation plan. These aren’t edge cases; they’re predictable outcomes when IT work proceeds without structured oversight.

A single scheduling conflict on a medical equipment installation can delay a hospital department’s operations by days, and that delay has real patient care consequences.

You avoid these outcomes when someone is tracking dependencies, confirming delivery windows, and keeping every contractor accountable to the same timeline. That’s the day-to-day value of the IT project manager role, and it’s why organizations across healthcare, hospitality, and government treat the position as non-negotiable. Without documented coordination, even experienced teams make assumptions that cost time and money.

Why scope creep is a project killer

Scope creep is one of the most common reasons IT projects run over budget and past deadline. It happens when new requests get added to a project without adjusting the timeline or resources, and it almost always accelerates when there’s no dedicated manager holding the line. Understanding IT project manager roles and responsibilities means recognizing that scope control is a full-time job, not a one-time conversation at the start of the engagement.

A strong IT project manager documents the original scope clearly, builds a change control process from day one, and communicates the impact of every proposed addition to stakeholders before approving it. Without that structure, a straightforward cabling installation can turn into a multi-phase network overhaul that nobody budgeted for. Clients and contractors both benefit when someone is actively managing what’s in scope and what isn’t.

The value of having one accountable person

On complex IT infrastructure projects, multiple vendors, subcontractors, and internal teams are often working in parallel. Coordinating those relationships requires someone with both technical fluency and organizational discipline. When you designate an IT project manager, you give every team a single point of contact for decisions, escalations, and status updates.

That clarity reduces wasted communication and speeds up problem resolution when issues surface. Accountability becomes specific rather than diffuse, which means problems get addressed faster and stakeholders spend less time tracking down answers. When everyone knows who to call, project momentum stays intact even when unexpected challenges appear.

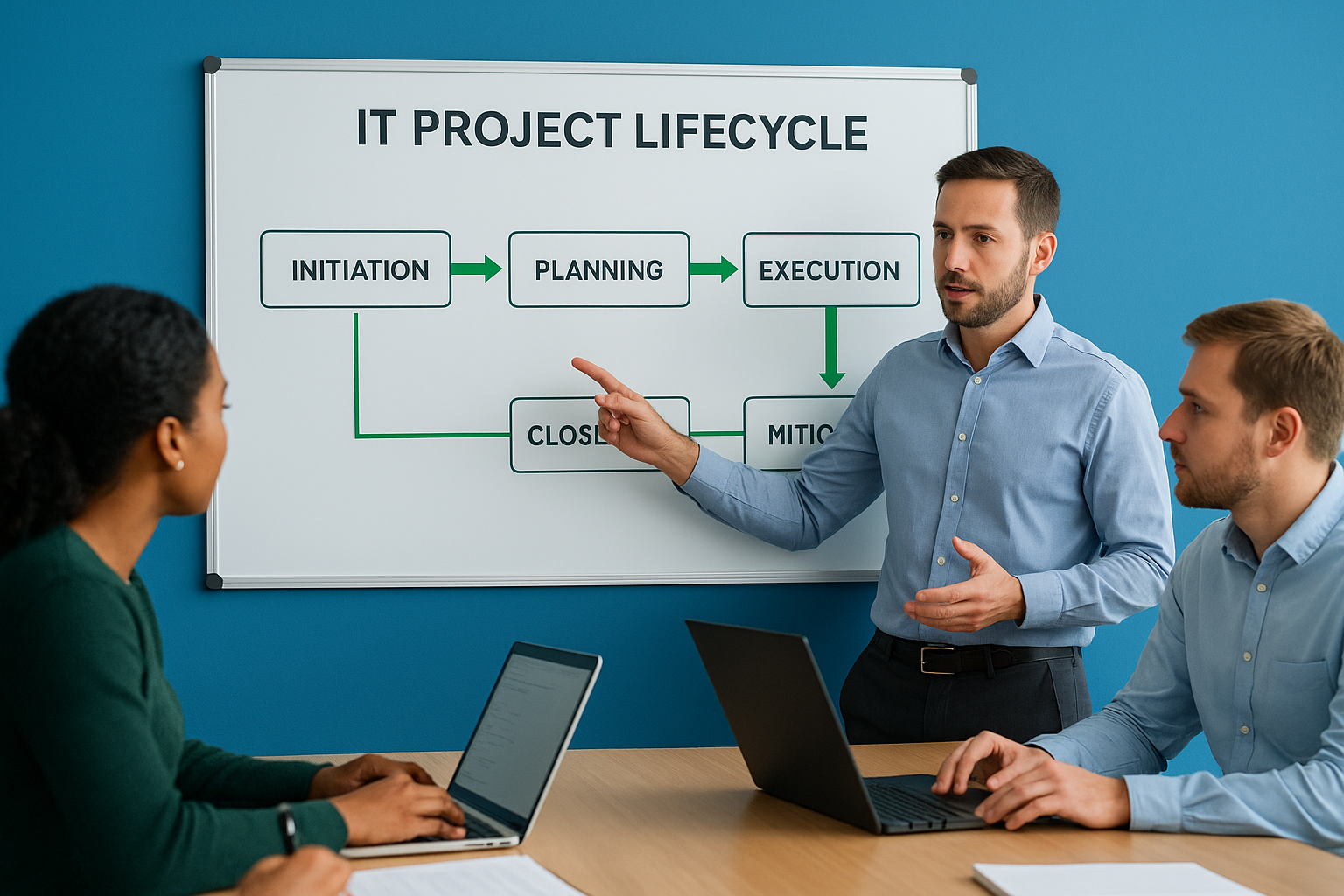

Core roles across the IT project lifecycle

An IT project manager’s responsibilities shift depending on where a project stands in its lifecycle. Initiation, planning, execution, monitoring, and closeout each demand different actions and decisions, and understanding where those responsibilities concentrate helps you see why the role requires consistent engagement from day one through final handoff.

Planning and scoping the project

Before any contractor picks up a cable or a technician touches a server rack, the IT project manager is defining the project’s boundaries. This means translating a client’s goals into a concrete scope document, identifying deliverables, building a realistic timeline, and allocating resources across vendors and internal teams. On an infrastructure project like a hospital network buildout or a multifamily ISP rollout, this phase sets the conditions for everything that follows.

A poorly scoped project creates confusion at every stage, and no amount of skilled execution can fully compensate for a weak planning foundation.

During planning, the project manager also identifies risks early and documents mitigation strategies before those risks become active problems. That proactive work is one of the clearest ways IT project manager roles and responsibilities differ from basic coordination.

Managing execution and stakeholder communication

Once work begins, the project manager shifts into an oversight and communication role. They track task completion against the baseline schedule, manage vendor relationships, and surface issues before they escalate. On complex installations with multiple contractors working in parallel, clear status reporting keeps every team aligned without creating bottlenecks.

Clients, facilities managers, and technical leads all need accurate, timely updates on progress, budget status, and any schedule adjustments. The project manager owns that communication channel and keeps it open throughout the build.

Closing out and documenting results

Project closeout is often the most overlooked phase, but it’s where the project manager confirms every deliverable meets the agreed standard and that all documentation is complete before the engagement ends. That documentation protects both the client and the service provider if questions arise later. Key closeout tasks include:

• Confirming final testing and inspection results
• Obtaining client sign-off on all deliverables
• Archiving project records for future reference
• Conducting a lessons-learned review with the team

Day-to-day responsibilities and key deliverables

Understanding it project manager roles and responsibilities at the daily level reveals how much active work the role actually involves. On any given day, an IT project manager is tracking task progress, resolving vendor conflicts, reviewing budget actuals, and updating stakeholders, often in rapid succession. The job is reactive by necessity but should be anchored by proactive systems that catch issues before they require emergency action.

Managing schedules, budgets, and vendor activity

The most time-intensive daily tasks involve schedule management and vendor coordination. The project manager checks whether contractors are hitting their milestones, confirms material deliveries are on track, and flags any slippage immediately rather than waiting for a weekly review meeting. On infrastructure projects with tight client timelines, a single missed delivery can cascade into a multi-day delay if no one is watching the critical path closely.

Budget tracking deserves the same daily attention as the schedule, because small overruns compound quickly across a long project.

You also need to communicate status to clients and internal stakeholders consistently. Clear, concise updates build trust and reduce the number of ad-hoc questions that interrupt your workflow. When clients know they’ll hear from you on a set schedule, the project relationship stays productive rather than anxious.

Producing deliverables that protect the project

Beyond coordination, an IT project manager produces documented outputs at every stage that protect both the client and the delivery team. These deliverables create a paper trail for decisions made, changes approved, and results achieved. Key deliverables include:

• Project schedule with assigned owners and milestone dates
• Risk register tracking active and potential issues
• Change order log documenting every scope adjustment
• Status reports aligned to client communication expectations
• Closeout documentation confirming tested and accepted work

Each of these documents serves a specific function. Without them, accountability becomes informal and disputes become harder to resolve. Producing them consistently is what separates a disciplined IT project manager from someone who simply attends meetings and sends emails.

Skills, tools, and methods IT project managers use

The skills that define IT project manager roles and responsibilities fall into two broad categories: technical knowledge and interpersonal ability. You need enough technical fluency to understand what your teams are building and why decisions matter, but you also need strong communication and organizational skills to keep every stakeholder informed and every task moving forward.

Technical and communication skills

Strong IT project managers combine hands-on infrastructure knowledge with the ability to translate technical detail into plain language for non-technical clients. You should understand concepts like network topology, cabling standards, and systems integration at a working level, even if you’re not the one doing the physical installation. That foundation helps you spot problems early and make faster decisions when contractors surface technical conflicts during a live build.

When you can speak both the language of the client and the language of the technician, you cut the miscommunication that derails timelines and budgets.

Communication skills extend beyond conversation. Clear written updates, documented decisions, and structured meeting agendas are all part of how effective project managers keep projects on track without requiring constant follow-up from stakeholders.

Project management tools and frameworks

Most IT project managers rely on a combination of scheduling software and structured frameworks to manage work. Tools like Microsoft Project support timeline building and resource allocation, while platforms like Microsoft Teams or SharePoint centralize documentation and communication. Frameworks like PMP (Project Management Professional) and Agile give you proven structures for planning, executing, and adapting as conditions change across a project.

Applying every framework rigidly is rarely the right move. The goal is to use methods that fit the project’s complexity and your client’s expectations. A hospital network buildout may call for a structured waterfall approach, while a phased multifamily ISP rollout benefits from iterative planning cycles that adjust as each building comes online.

What employers look for in IT project managers

When organizations hire for IT project manager roles and responsibilities, they look for candidates who demonstrate both formal credentials and practical experience. A resume that lists a certification without project history rarely stands out, and project history without any structured training raises questions about methodology. Employers want someone who has managed real work under real pressure and brought it in on time.

Certifications and formal qualifications

The Project Management Professional (PMP) certification from the Project Management Institute remains the most recognized credential in the field. Employers treat it as a baseline signal that you understand structured project delivery, not just the mechanics of keeping a task list. Many organizations also look for familiarity with ITIL frameworks if the role sits closer to IT service operations, or Agile certifications if the team runs iterative delivery cycles.

Holding a relevant certification tells an employer you’ve committed to learning the discipline, but it’s your project history that proves you can apply it.

Beyond credentials, most job postings require a bachelor’s degree in information technology, computer science, or a related field as a minimum qualification. Some employers waive the degree requirement entirely for candidates with a strong track record of managing large infrastructure projects.

Demonstrated experience and soft skills

Employers consistently prioritize verified experience managing multi-vendor projects over technical depth in any single area. If you’ve coordinated contractors, managed change orders, and delivered structured cabling or network buildouts on schedule, those examples speak louder than a list of technologies you know. You should be prepared to describe specific projects, the challenges you faced, and how you resolved them.

Communication and stakeholder management matter just as much as technical competence in most hiring decisions. Employers want someone who can hold a client’s trust, push back on scope creep professionally, and keep internal teams aligned without creating friction. Those skills are harder to train than technical ones, which is why employers screen for them carefully.

Final takeaways

The full picture of IT project manager roles and responsibilities comes down to one core idea: someone needs to own the outcome. That person tracks the schedule, controls the scope, manages vendors, and communicates clearly with every stakeholder from planning through closeout. Without that ownership, even technically strong teams produce inconsistent results across complex infrastructure work.

If you’re hiring, evaluating, or stepping into this role yourself, the details in this guide give you a practical framework for what disciplined project management looks like in real IT infrastructure environments. The skills, tools, and credentials all matter, but so does the judgment to apply them when conditions shift mid-project. Clients trust the project manager to hold the line on scope, budget, and timeline, and that trust is earned through consistent, transparent execution.

For organizations ready to put these principles into practice with a proven delivery team, Trindom Global handles expert-managed IT infrastructure installations backed by structured project oversight from planning through closeout.

The post IT Project Manager Roles And Responsibilities: Full Guide appeared first on Trindom Global.

At Trindom Global, we handle design-build, installation, and integration for IT infrastructure across healthcare, commercial, government, and hospitality environments. We’ve seen firsthand what separates a server room that runs reliably for years from one that becomes a headache within months. The difference almost always comes down to upfront planning and disciplined execution.

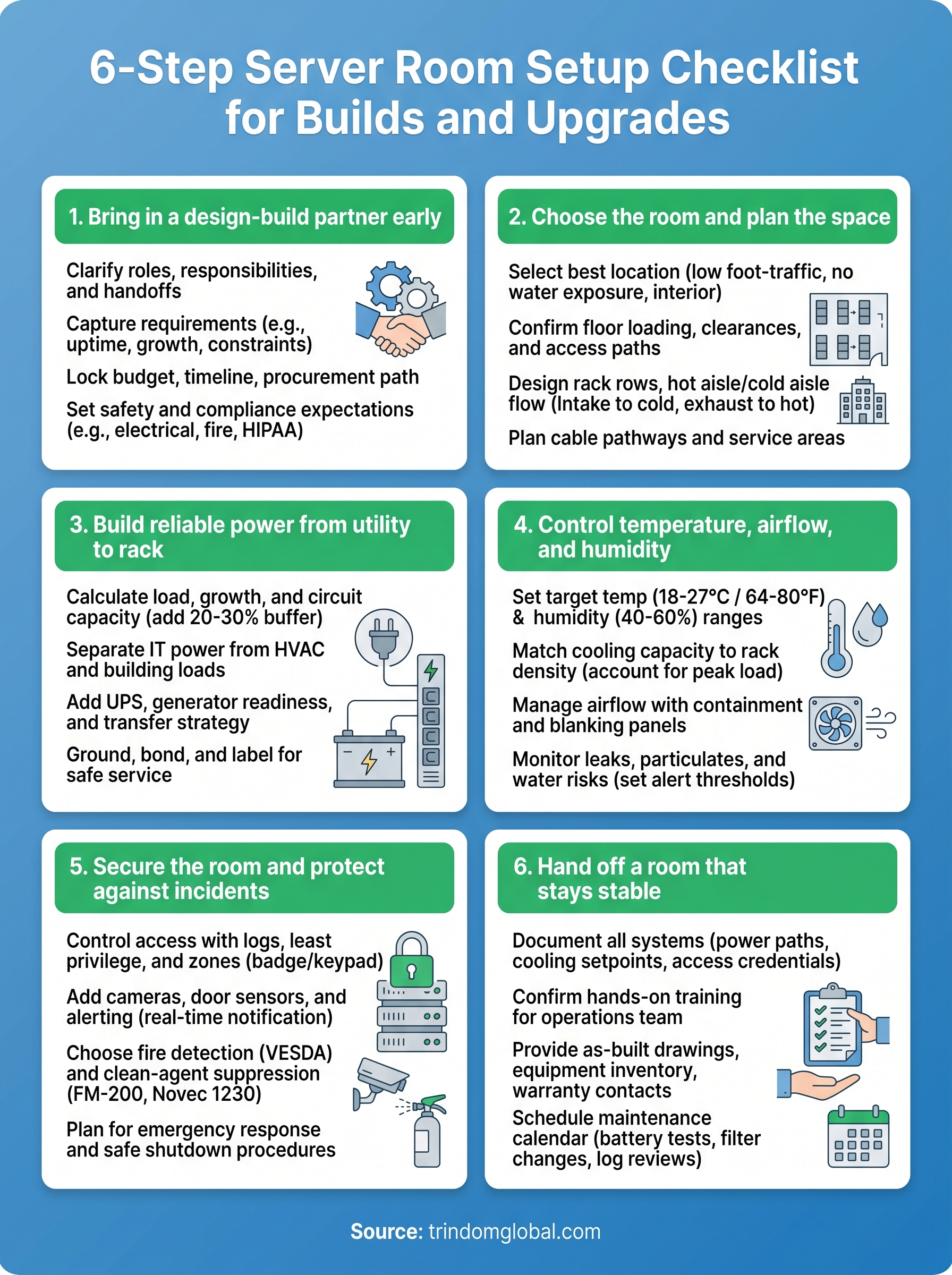

This guide breaks the process into six clear steps, covering everything from site selection and power planning to rack layout, cooling, cabling, and physical security. Each step includes the specific decisions and action items you need to address so nothing gets missed. Use it as a working checklist for your next build or upgrade, and you’ll walk into that project with a plan that actually holds up.

1. Bring in a design-build partner early

Most IT infrastructure projects run into trouble not because of bad equipment choices, but because the design and build phases are treated as separate conversations. When you bring in a design-build partner at the start, you get a single team that carries accountability from the first sketch through final commissioning. That continuity prevents the handoff failures that turn a straightforward project into a costly, drawn-out problem.

Clarify roles, responsibilities, and handoffs

The first meeting with your design-build partner should produce a clear responsibility matrix that names who owns each deliverable, from site surveys and permits to rack installation and final cabling. You also need to document every handoff point between teams, such as when structural work stops and IT infrastructure work begins, and confirm who signs off at each stage. Without that clarity, tasks fall into the gap between contractors and nobody catches them until something is missing or broken.

Capture requirements and success criteria

Your partner needs to understand what success looks like before they touch a floor plan. This means documenting your current infrastructure, projected growth over three to five years, uptime requirements, and any application or workload constraints. A solid server room setup checklist starts here, because every downstream decision about space, power, and cooling ties back to the requirements you define in this early phase.

Getting requirements wrong at the start is far more expensive than taking extra time to get them right before any work begins.

Lock the budget, timeline, and procurement path

Establish a firm budget range and project schedule before design work goes too deep. Your partner should help you identify long-lead equipment early, since network switches, UPS units, and PDUs often carry extended lead times that can stall a project if ordering gets delayed. Confirm whether you’re purchasing through a GSA schedule, a preferred vendor agreement, or open-market procurement, since that affects both pricing and delivery windows.

Set safety and compliance expectations

Your design-build partner needs a full picture of the regulatory requirements that apply to your facility from day one. This includes electrical codes, fire suppression standards, and any sector-specific rules such as HIPAA for healthcare environments. Setting these expectations upfront means your design is built to pass inspection the first time, not revised after a failed walkthrough.

2. Choose the room and plan the space

Before any equipment ships, you need to commit to a physical location and layout that supports the demands of your infrastructure. Poor space decisions made at this stage force expensive changes later, and no amount of good equipment choices will fix a room that was never designed for the job.

Select the best location in the building

Put your server room away from exterior walls, flood-prone areas, and high-foot-traffic zones. Interior rooms on upper floors reduce exposure to water damage and unauthorized entry. Confirm that the space has adequate utility access for power feeds and network conduit runs before you finalize any floor plan.

Confirm floor loading, clearances, and access paths

Fully loaded racks can weigh over 2,000 pounds, and your floor structure needs to support that load safely. Work with a structural engineer to verify ratings and identify where you need weight distribution plates. Also confirm that door widths and corridor clearances allow equipment to move in and out without disassembly.

Undersized doorways have stalled more than one server room project when full racks arrived and couldn’t clear the entrance.

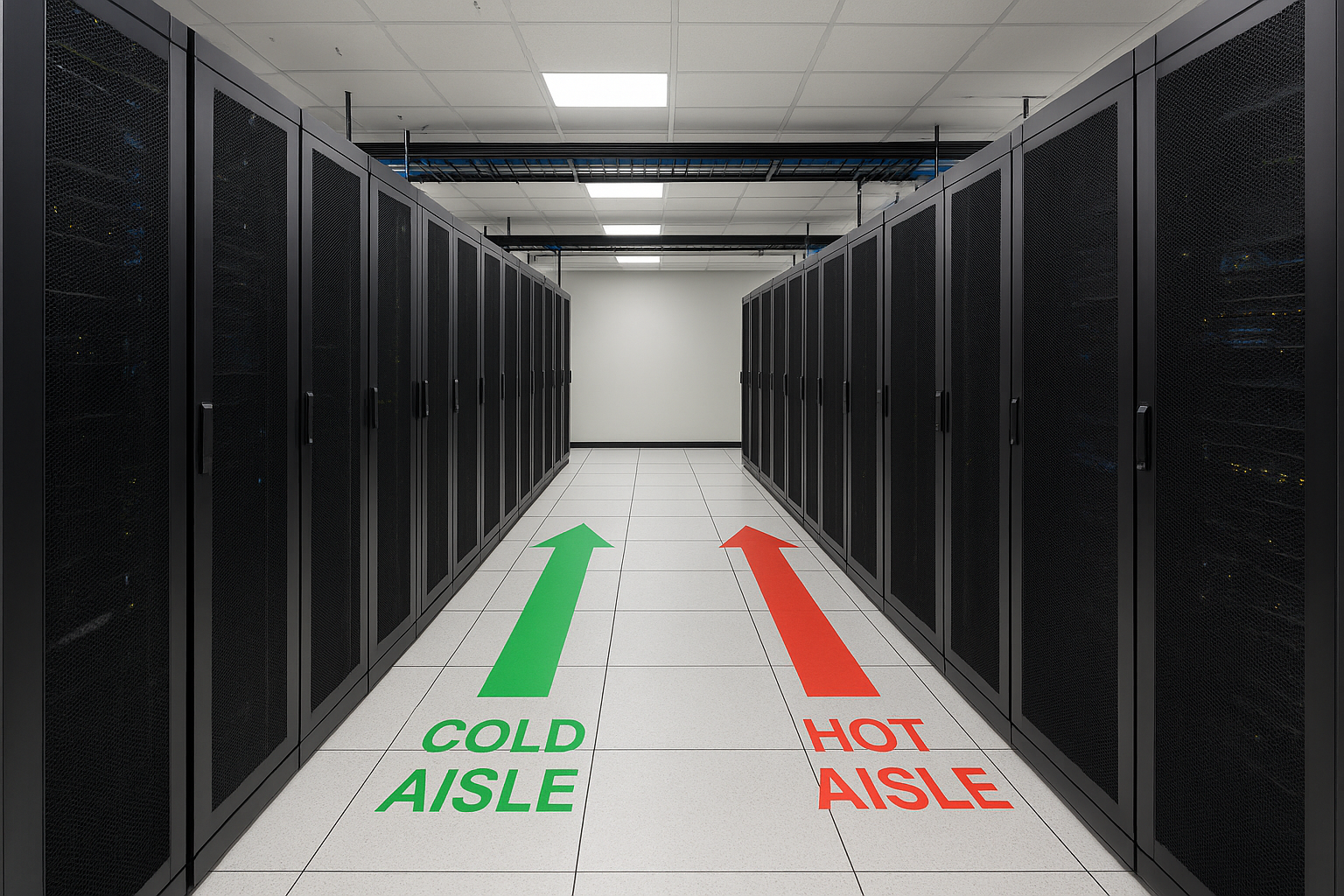

Design rack rows, hot aisle and cold aisle flow

Alternate rack rows so that equipment intake faces cold aisles and exhaust faces hot aisles. This separation is a core principle on any solid server room setup checklist because it directly reduces cooling load and prevents recirculation.

Plan cable pathways and service areas

Run overhead cable trays or raised floor pathways along defined routes from day one. Reserve dedicated zones for power and data cables separately to simplify troubleshooting and reduce interference between runs.

3. Build reliable power from utility to rack

Power failures and capacity shortfalls cause more unplanned downtime than almost any other factor in a server room. Getting your electrical infrastructure right from the utility feed all the way to each rack PDU is a non-negotiable part of any server room setup checklist.

Calculate load, growth, and circuit capacity

Start by totaling the nameplate wattage for every piece of equipment you plan to install, then add a buffer of at least 20 to 30 percent for future growth. Your electrician needs this number to size circuit breakers, panel capacity, and conduit runs before any work begins.

Separate IT power from HVAC and building loads

Your server room needs dedicated electrical circuits that serve only IT equipment. Sharing circuits with HVAC systems or general building loads introduces voltage fluctuations and creates situations where a single tripped breaker takes down both cooling and compute at the same time.

Dedicated IT circuits also make it far easier to track power consumption accurately and respond quickly when something trips.

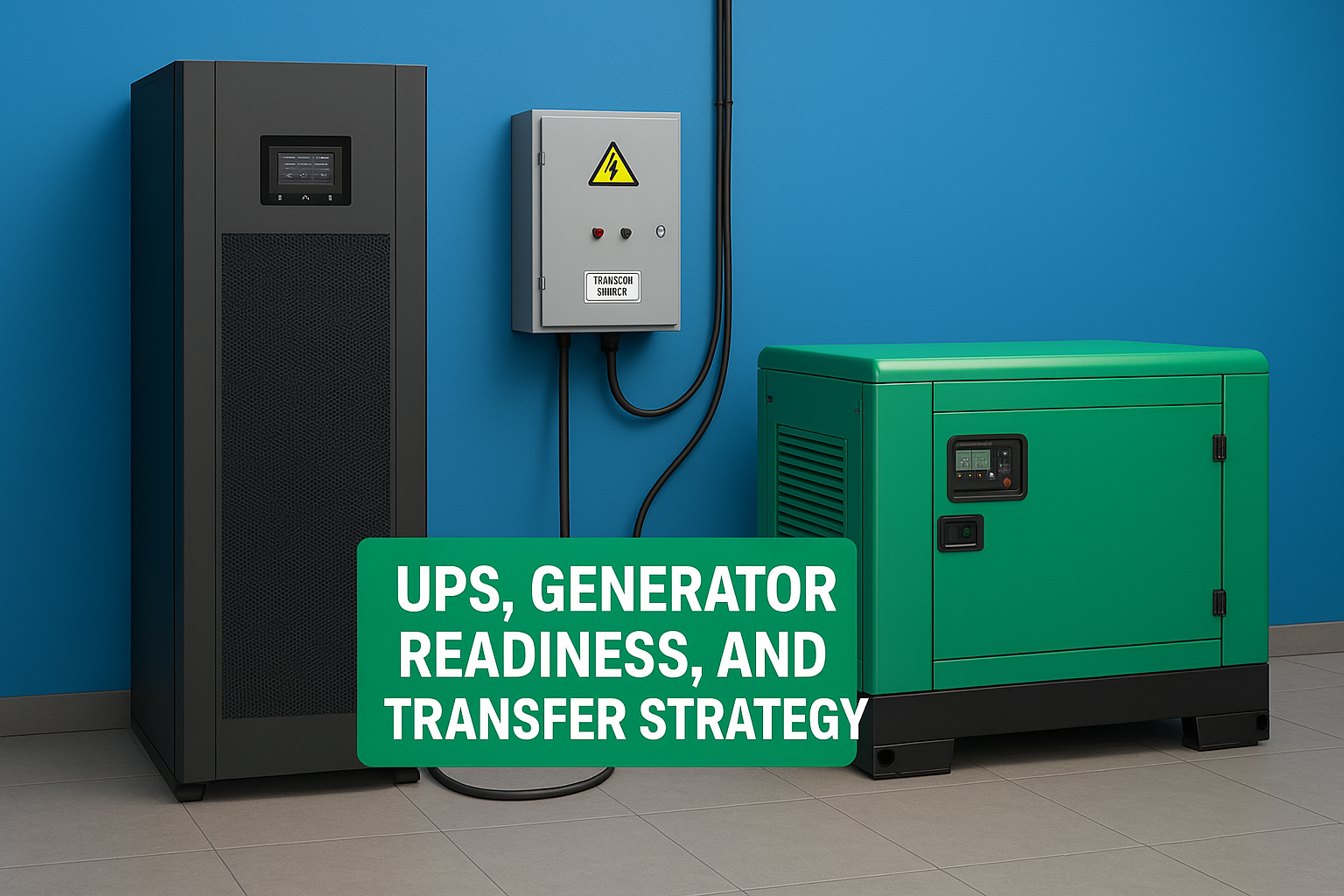

Add UPS, generator readiness, and transfer strategy

Install a UPS system sized for your full load plus growth headroom, and confirm that your facility can accept a generator feed. Define your transfer time requirements so the UPS bridge period covers the gap between utility loss and generator pickup without dropping any critical systems.

Ground, bond, and label for safe service

Every rack, PDU, and cable pathway needs to be properly grounded and bonded to the building ground system. Label every circuit, breaker, and PDU port clearly so technicians can identify and isolate circuits safely without guessing under pressure.

4. Control temperature, airflow, and humidity

Temperature and airflow failures are among the fastest ways to lose equipment and trigger unplanned downtime. Every server room setup checklist needs to treat environmental control as infrastructure, not an afterthought, because modern equipment generates significant heat in a confined space.

Set target temperature and humidity ranges

ASHRAE recommends keeping server inlet temperatures between 64.4°F and 80.6°F (18°C to 27°C) and relative humidity between 40 and 60 percent. Operating outside these ranges accelerates component failure, causes condensation, or generates static discharge events that damage hardware.

Match cooling capacity to rack density and layout

Your cooling system needs to support your peak rack density, not just your average load. High-density racks can produce 10 to 30 kilowatts per rack, and standard building HVAC systems are not designed for that kind of concentrated heat output. Work with your design-build partner to size precision cooling units that match your actual layout and allow room for growth.

Undersizing cooling capacity by even 15 percent can push inlet temperatures above safe thresholds during peak workloads.

Manage airflow with containment and blanking panels

Fill every empty rack unit with blanking panels to prevent hot exhaust air from recirculating back to equipment intakes. Add physical containment barriers at the ends of hot and cold aisles to enforce separation and improve cooling efficiency.

Monitor leaks, particulates, and water risks

Install environmental sensors that track temperature, humidity, and water presence at floor level and near cooling units. Set alert thresholds so your team gets notified immediately when any reading leaves the acceptable range.

5. Secure the room and protect against incidents

Physical security and incident protection often get less attention than power and cooling, but a server room with no access controls or fire suppression plan is a serious liability. Every server room setup checklist needs to treat security as infrastructure, covering who gets in, what the room detects, and how your team responds when something goes wrong.

Control access with logs, least privilege, and zones

Limit physical access to the server room to only the people who have a direct operational need. Use badge readers or keypad-controlled locks that generate access logs so you have an auditable record of every entry and exit.

Add cameras, door sensors, and alerting

Install IP cameras at every entry point and inside the room covering rack rows. Pair cameras with door contact sensors that trigger an alert whenever the room is accessed outside of approved hours.

A camera system with no alerting is just a recording device; real security requires real-time notification when something unexpected happens.

Choose fire detection and clean-agent suppression

Standard sprinkler systems destroy equipment. Install very early smoke detection apparatus (VESDA) or equivalent aspirating smoke detection, paired with a clean-agent suppression system such as FM-200 or Novec 1230 that suppresses fire without water or residue.

Plan for emergency response and safe shutdown

Document a clear emergency response procedure that covers who gets notified, in what order, and what steps initiate a controlled shutdown of systems before suppression activates. Post that procedure visibly inside the room and review it with your team annually.

6. Hand off a room that stays stable

A finished server room is only valuable if it stays operational after the project team leaves. Before you close out the build, walk through your completed server room setup checklist one final time with your design-build partner and document every system: power paths, cooling setpoints, access credentials, and suppression procedures. Confirm that your operations team has received hands-on training and knows where to find every label, log, and emergency procedure.

Your documentation package should include as-built drawings, equipment inventory, warranty contacts, and a scheduled maintenance calendar covering UPS battery tests, cooling filter changes, and access log reviews. A room with no maintenance plan degrades quickly, and the work you put into the build loses its value within a year. If you’re ready to start planning your next build or upgrade, connect with the Trindom Global team to get expert support from design through final commissioning.

Related Posts

Server Room Cabling Best Practices: 5 Tips For Clean Racks

A messy server room isn’t just an eyesore, it’s a liability. Tangled cables block airflow, make troubleshooting a nightmare, and turn simple maintenance tasks into hours-long ordeals. Following server room cabling best practices is one of the most effective ways to protect uptime, reduce heat buildup, and keep your infrastructure running the way it should. […]

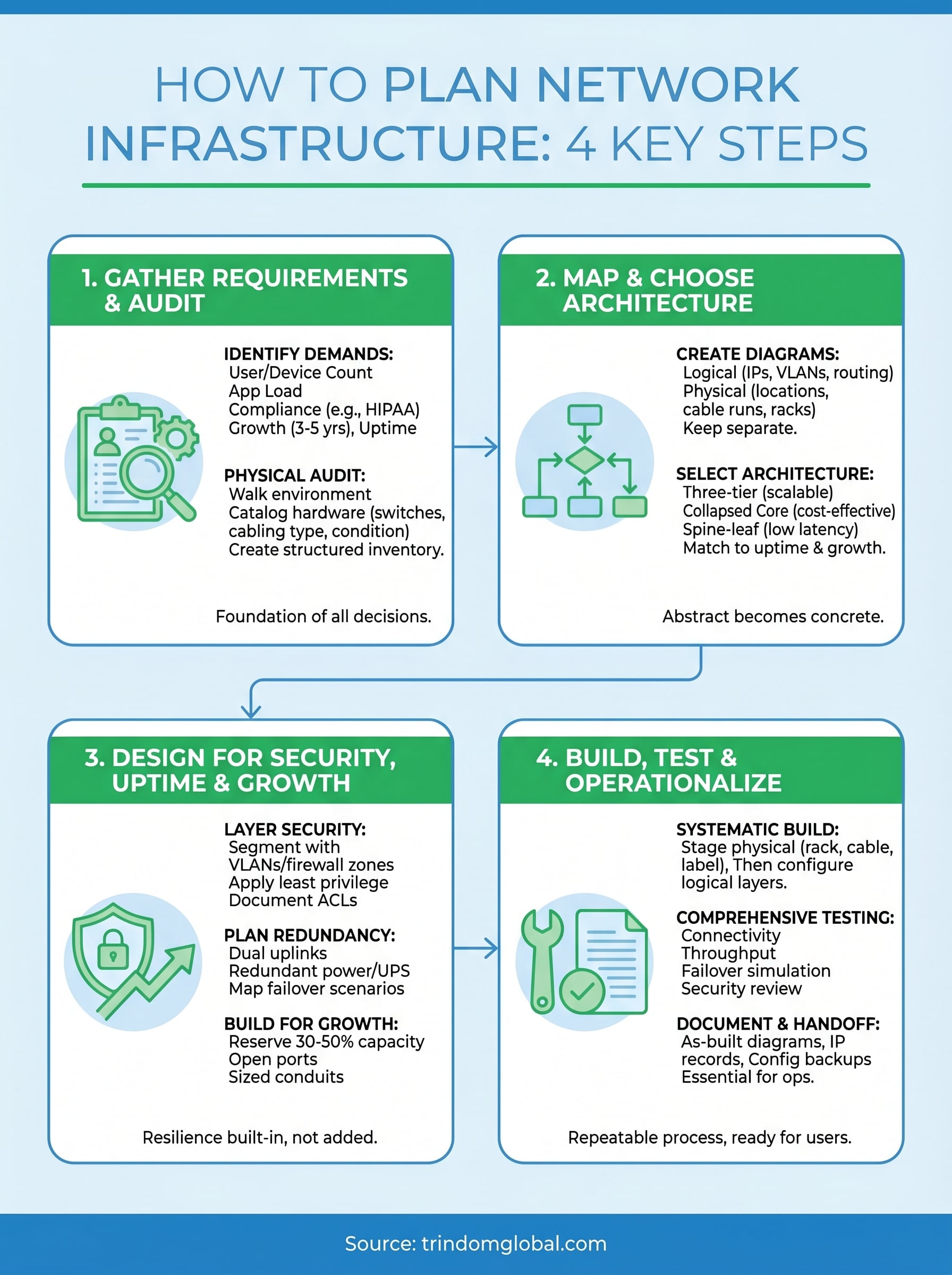

How To Plan Network Infrastructure: Steps & Best Practices

A network infrastructure plan is the difference between a system that scales with your organization and one that crumbles under pressure. Whether you’re building out a hospital’s IT backbone, wiring a commercial property, or upgrading a government facility, knowing how to plan network infrastructure the right way saves you from costly rework, security gaps, and […]

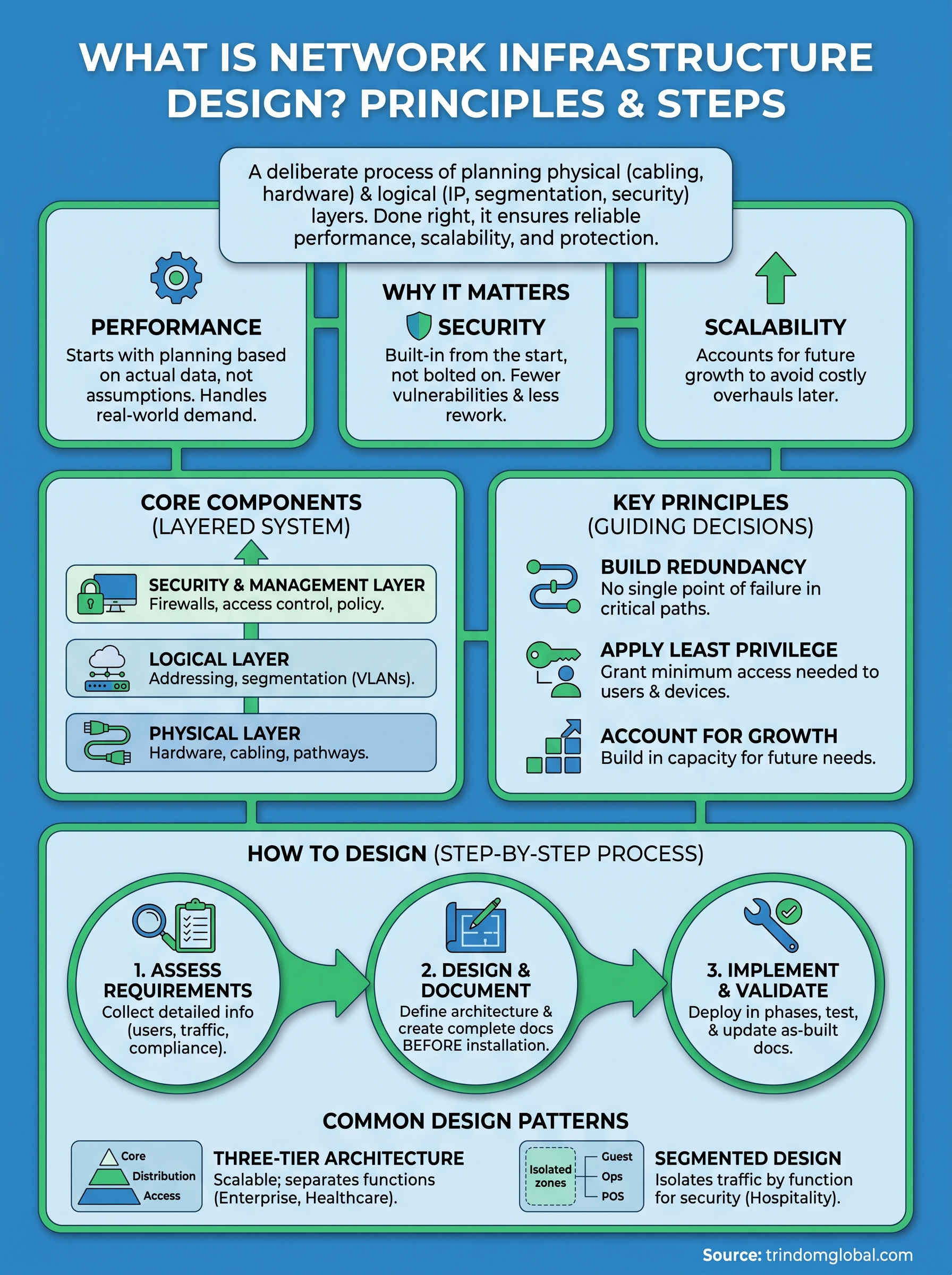

What Is Network Infrastructure Design? Principles & Steps

So, what is network infrastructure design? It’s the deliberate process of planning, architecting, and documenting every layer of a network, from physical cabling and hardware placement to logical configurations like IP addressing, segmentation, and security policies. Done right, it gives an organization a network that performs reliably, scales without painful overhauls, and protects critical data […]

The post 6-Step Server Room Setup Checklist for Builds and Upgrades appeared first on Trindom Global.

At Trindom Global, we’ve designed and built network infrastructure across healthcare, hospitality, commercial, and government environments. Our teams handle everything from structured cabling and headend buildouts to full integration of capital equipment systems. That hands-on experience has taught us exactly where planning efforts tend to break down, and what separates a resilient network from a fragile one.

This guide walks you through the core steps and best practices for planning network infrastructure from the ground up. You’ll learn how to assess your requirements, select the right components, design for scalability and security, and avoid the most common mistakes. By the end, you’ll have a practical framework you can apply to your next project, whether you’re handling it internally or partnering with a design-build team.

What good network planning covers

Good network planning is not just about picking the right switches and running cable. It is a structured process that connects your business requirements to the physical and logical design of your infrastructure. When you understand how to plan network infrastructure properly, you make decisions about topology, capacity, security, and lifecycle before a single wire gets pulled. That sequence matters enormously.

The layers a solid plan addresses

A network plan covers every layer from the physical cabling to the applications running on top of it. Starting at the bottom, you need to account for structured cabling and physical pathways: conduit runs, cable types (Cat6A, fiber, coax), patch panels, and rack locations. From there, the plan moves up to logical design, which includes IP addressing schemes, VLAN segmentation, routing protocols, and firewall rules. Each layer depends on the one below it, so a gap at any level creates problems that compound upward.

The most expensive network fixes happen when a physical or logical design flaw only becomes visible after installation is complete.

Redundancy also needs to be addressed at each layer. That means dual uplinks and redundant power supplies, UPS systems, and documented failover procedures. In healthcare environments, for example, a network outage can directly affect patient care systems, which makes high-availability design a hard requirement, not an optional upgrade.

What planning prevents

Poor planning shows up in predictable ways: network bottlenecks that appear when traffic grows beyond what the original design supported, security gaps that surface after an audit or incident, and cabling that has to be torn out and replaced because the original layout did not account for future expansion. Each of these outcomes is avoidable with upfront design work.

Your plan should also define documentation standards from day one. That includes as-built diagrams, port maps, IP address management records, and change logs. Teams that skip documentation consistently struggle with troubleshooting and compliance audits because nobody can accurately describe what is actually installed once the original crew moves on.

Step 1. Gather requirements and audit the current network

Before you design anything, you need a clear picture of what the network must do and what you’re working with today. Skipping this step is the single most common cause of over-budget projects and infrastructure that misses the mark. This is where understanding how to plan network infrastructure really begins: with data, not assumptions.

Identify business and technical requirements

Start by documenting the specific demands the network must support: user counts, device types, bandwidth-heavy applications, and any regulatory requirements such as HIPAA for healthcare or FedRAMP for government. Talk to the stakeholders who actually use the systems, not just the IT team. Their input reveals real-world usage patterns that a spec sheet never captures.

Use a requirements template like this to structure your intake:

Audit your existing infrastructure

Once you have your requirements, walk the physical environment and catalog everything already installed. Document every switch, router, firewall, cabling run, and patch panel. Note the age and condition of existing hardware and flag anything that cannot support the new design, whether that is outdated Cat5e cabling or end-of-life switches with no vendor support.

An accurate as-built audit prevents you from designing around infrastructure that will fail the moment traffic increases.

Record your findings in a structured inventory spreadsheet that includes device model, firmware version, location, and port utilization. That document becomes the foundation for every design decision in the steps ahead.

Step 2. Map the network and choose an architecture

With your requirements documented and your existing infrastructure audited, the next step in how to plan network infrastructure is to translate that data into a visual map and a deliberate architecture choice. This is where the abstract becomes concrete: you decide how traffic flows, where devices sit, and which topology fits your environment.

Draw your logical and physical diagrams

Start with a logical network diagram that shows IP address ranges, VLANs, routing paths, and security zones. Then create a separate physical diagram that maps device locations, cabling runs, rack positions, and port assignments. Keep these two diagrams distinct because they serve different purposes: the logical diagram guides configuration decisions, and the physical diagram guides installation crews.

Keeping logical and physical diagrams separate prevents confusion during installation and simplifies troubleshooting when issues arise later.

Use a diagramming tool to build both maps before procurement begins. Your diagrams should label every major device with its hostname, IP address, and role so installation crews and support teams work from the same reference document.

Select the right architecture for your environment

Your architecture choice directly determines how well the network handles growth, failures, and security incidents. Three common models apply to most commercial and institutional environments:

For most hospital and commercial projects, a three-tier or collapsed-core model delivers the right balance of redundancy and manageability. Choose based on your documented uptime requirements and growth projections from Step 1, not on what is familiar or cheapest upfront.

Step 3. Design for security, uptime, and future growth

Architecture selection sets your foundation, but security, redundancy, and scalability have to be built into the design itself, not added after the fact. This step is where understanding how to plan network infrastructure pays off most: every decision you make here determines whether your network holds up under real-world conditions or forces expensive retrofits down the road.

Layer security into the design from the start

Security belongs in the network architecture, not bolted on as an afterthought. Segment your network using VLANs and firewall zones to isolate sensitive systems, such as medical devices or payment terminals, from general user traffic. Apply the principle of least privilege at the VLAN and ACL level so devices and users only reach the systems they actually need.

Segmentation limits the blast radius of a breach: an attacker who compromises one VLAN cannot automatically move laterally across your entire environment.

Document every firewall rule and access control list in your design files. Undocumented rules get forgotten, and forgotten rules become security gaps.

Plan redundancy at every critical point

Uptime requirements from Step 1 should directly drive your redundancy decisions. Dual uplinks between distribution and core switches, redundant power supplies on critical devices, and UPS coverage on networking closets are the baseline for any environment where downtime carries a real cost.

Map out your failover scenarios explicitly: what happens when an uplink fails, when a core switch goes offline, or when ISP connectivity drops. Define the expected recovery time for each scenario and verify your design can actually meet it.

Build in room to grow

Your design should support at least 30 to 50 percent more capacity than current requirements demand. Reserve IP address space in your subnet plan, leave open switch ports in each closet, and size your conduit runs to accommodate additional cabling runs without a full renovation.

Step 4. Build, test, and operationalize the network

With your design finalized, you move into execution. The work you did in the previous steps on how to plan network infrastructure pays off here because your crew has clear diagrams, a documented architecture, and defined requirements to work from. That preparation turns a complex build into a repeatable, verifiable process rather than a guessing exercise on the job site.

Stage the installation systematically

Roll out the physical layer first: rack and stack all equipment, run and terminate cabling, and label every port and cable run according to your physical diagram. Follow the layer sequence you planned because troubleshooting a logical misconfiguration while the physical layer is still incomplete wastes time. Once all hardware is in place and powered, begin configuring switches, routers, and firewalls from the core outward.

Labeling every port and cable during installation costs an hour upfront and saves dozens of hours during future troubleshooting and moves.

Work through configuration using a checklist tied directly to your logical diagram so nothing gets skipped.

Test before you go live

Testing confirms your network performs the way your design intended. Run the following checks before handing the network to end users:

• Connectivity tests: verify all VLANs route correctly and segmentation rules block unauthorized traffic
• Throughput testing: confirm bandwidth meets your documented application requirements
• Failover testing: simulate an uplink failure and verify redundancy switches over within your defined recovery window
• Security review: validate that all ACLs and firewall rules match your design documentation

Document and hand off

After testing passes, compile your final as-built documentation: updated logical and physical diagrams, IP address records, device inventory, and full configuration backups. Hand this package to the team responsible for ongoing operations. Without complete documentation, every support call and future upgrade forces that team to start from scratch.

Wrap-up and next actions

Good network infrastructure does not happen by accident. When you follow the steps in this guide, from requirements gathering and site auditing through architecture selection, security design, and systematic deployment, you build a network that holds up under real-world load and scales as your organization grows. That is the core of how to plan network infrastructure: structured decisions made in the right order, before anyone pulls a cable or configures a switch.

Your next move is to schedule a requirements intake session with both IT staff and business stakeholders. Use the tables and checklists from this guide to document what you actually need before you touch any hardware. If your project involves healthcare, government, or large commercial environments, partnering with an experienced design-build team accelerates every phase from planning through final handoff.

Ready to move forward? Talk to Trindom Global’s infrastructure specialists about your project requirements and get expert guidance from design through installation.

Related Posts

What Is Network Infrastructure Design? Principles & Steps

So, what is network infrastructure design? It’s the deliberate process of planning, architecting, and documenting every layer of a network, from physical cabling and hardware placement to logical configurations like IP addressing, segmentation, and security policies. Done right, it gives an organization a network that performs reliably, scales without painful overhauls, and protects critical data […]

Server Room Cabling Best Practices: 5 Tips For Clean Racks

A messy server room isn’t just an eyesore, it’s a liability. Tangled cables block airflow, make troubleshooting a nightmare, and turn simple maintenance tasks into hours-long ordeals. Following server room cabling best practices is one of the most effective ways to protect uptime, reduce heat buildup, and keep your infrastructure running the way it should. […]

5 Audio Visual Installation Services for Offices & Homes

A conference room with a glitchy projector and tangled cables doesn’t exactly inspire confidence during a client presentation. Neither does a home theater setup where the surround sound only works on one side. Whether it’s a boardroom or a living room, audio visual installation services make the difference between a system that actually works and […]

The post How To Plan Network Infrastructure: Steps & Best Practices appeared first on Trindom Global.

At Trindom Global, we design, build, and install structured cabling systems for hospitals, commercial facilities, and government agencies. Our teams have seen firsthand what happens when cable management gets ignored, and what changes when it’s done right. Poor cabling choices compound over time, turning a functional server room into a tangled mess that’s expensive to fix and risky to operate.

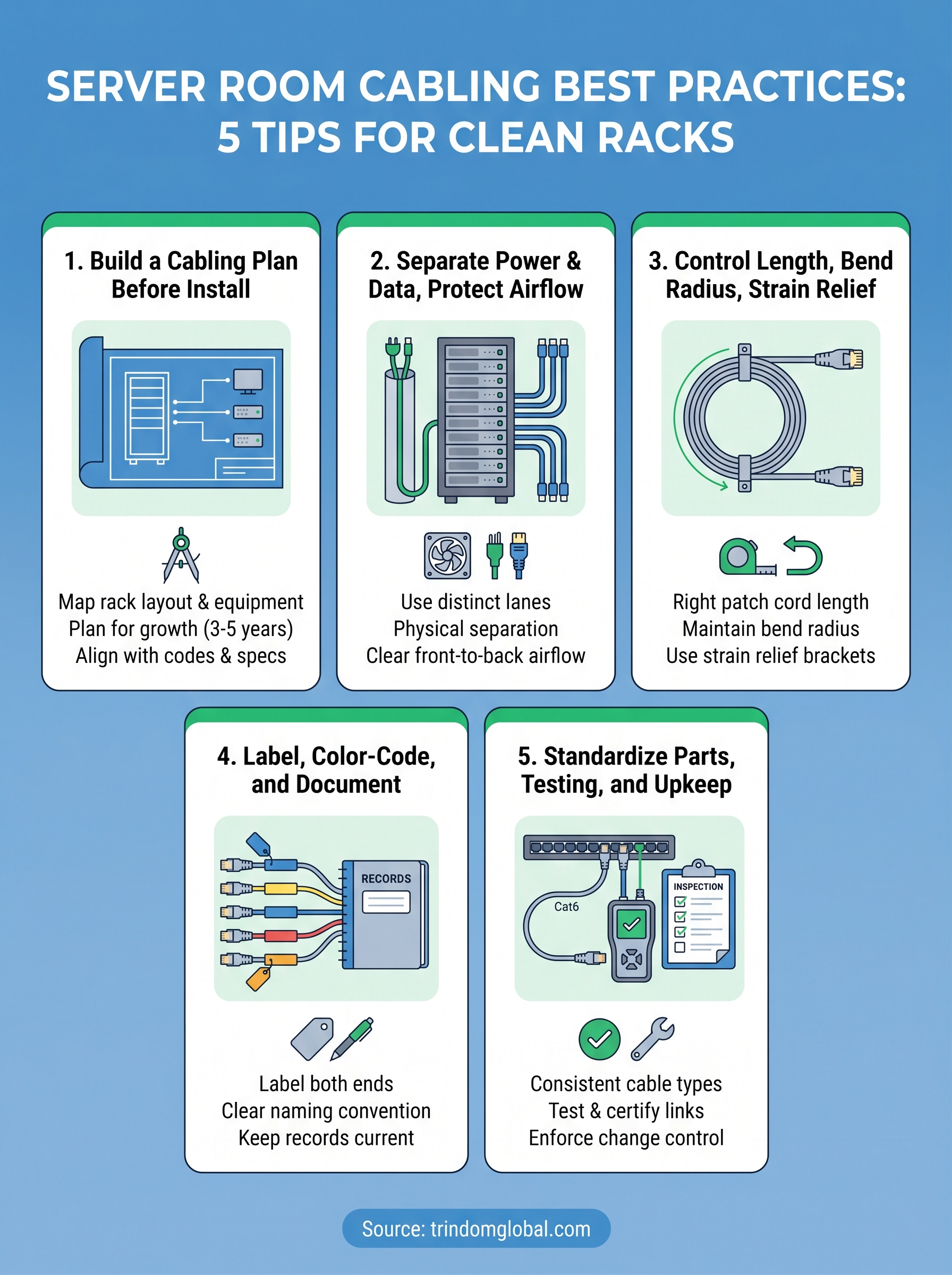

This article breaks down five practical tips for organizing your server room racks, improving airflow, and building a cabling setup that’s easy to maintain and scale as your infrastructure grows.

1. Build a cabling plan before install

A cabling plan is the foundation of every clean server room. Without one, you end up making decisions on the fly that create long-term problems: wrong cable lengths, poor routing, and no clear record of what connects where. Planning before installation saves you from costly rework and gives your team a reliable reference when issues arise.

When to bring in a design-build partner

Bringing in a design-build partner early gives you access to expertise before any cable gets pulled. Experienced partners can identify routing conflicts, recommend the right pathways, and align your cabling layout with your rack strategy from the start. If your project involves multiple racks or phased buildouts, professional planning pays for itself quickly.

What to map before you touch a cable

Before you pull a single cable, document your rack layout, equipment positions, and port assignments. A detailed cable map should include source and destination for every run, cable type, estimated length, and the pathway it follows. This information becomes your installation reference and your baseline for future changes.

How to plan for growth and change

Your plan should account for where you are today and where you expect to be in three to five years. Build in spare capacity on patch panels, leave room in cable trays, and keep conduit pull space available. Structured growth planning prevents you from rebuilding a rack every time you add a new device.

A cabling plan that ignores future growth will cost more in rework than it saves in initial planning time.

What to align on for healthcare and government spaces

Healthcare and government projects carry stricter compliance requirements that affect cabling choices, labeling standards, and documentation depth. Align your plan with applicable codes and equipment manufacturer specifications well before the design is finalized, since changes during or after installation are significantly more disruptive in regulated environments.

How Trindom Global supports planning and integration

Trindom Global’s design-build approach means planning and installation are handled by the same team, so nothing gets lost between the design phase and the field. From hospital equipment rooms to government facilities, the team works with clients to turn IT objectives into a structured, scalable cabling system that performs from day one.

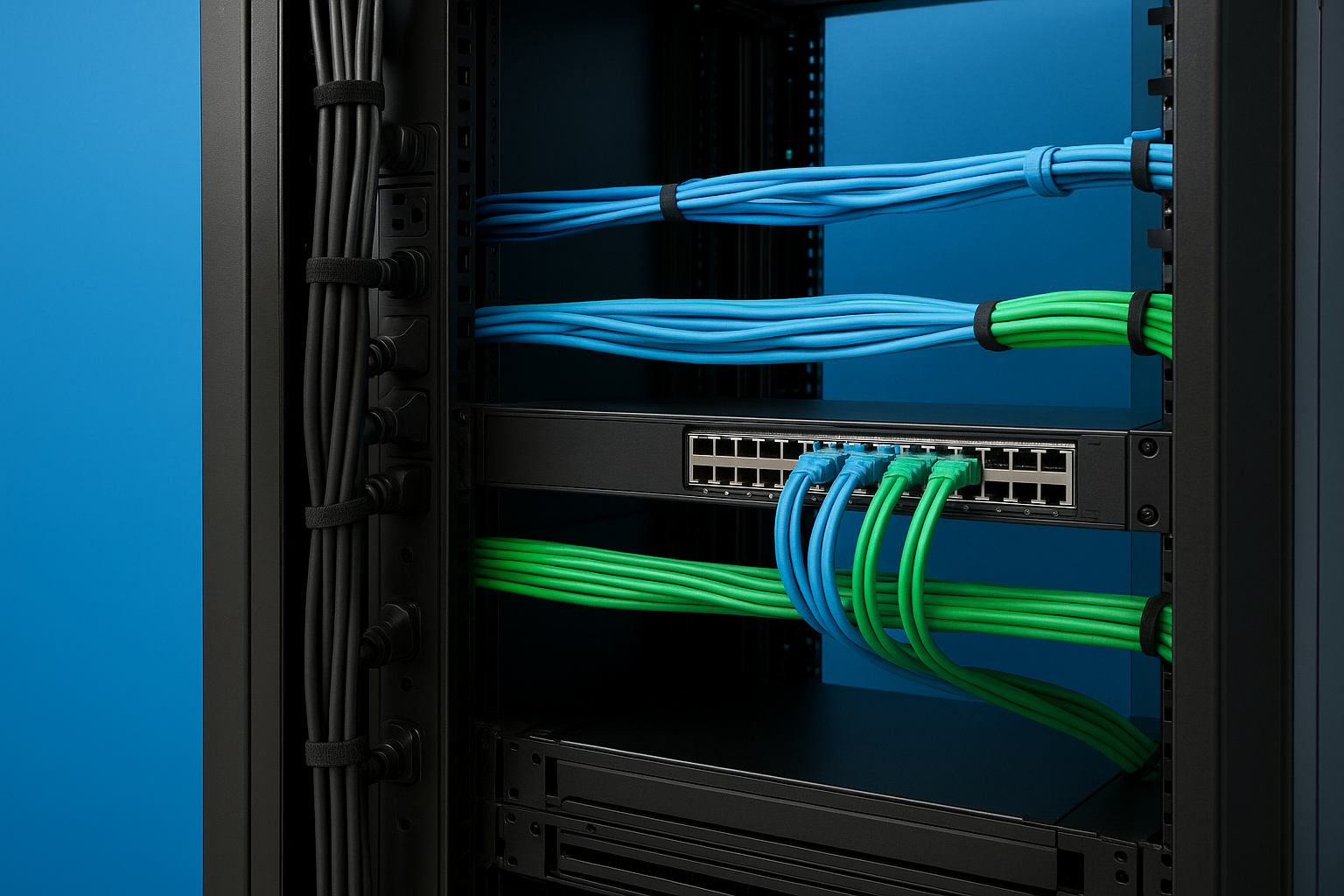

2. Separate power and data and protect airflow

Mixing power and data cables in the same pathway creates interference, signal degradation, and blocked airflow. Keeping them physically separated is one of the core server room cabling best practices that protects both performance and thermal management in your racks.

How to choose top-entry vs bottom-entry pathways

Top-entry pathways pair well with overhead cable trays, while bottom-entry routes work better in raised-floor environments. Pick the approach that matches your room layout and where your cable runs originate.

How to route power, copper, and fiber in distinct lanes

Run power cables on one side of the rack and data cables on the other. Keep fiber physically separated from copper to protect delicate fiber strands from heavier power bundles pressing against them.

Crossing power and data cables at right angles, when unavoidable, reduces electromagnetic interference significantly.

How to use vertical and horizontal cable management

Vertical managers handle inter-rack runs, while horizontal managers organize patch connections at each rack unit. Use both to control slack and keep cable bundles off your equipment faces.

How to keep front-to-back airflow clear

Never route cables across the front or rear of your equipment. Blocked intake and exhaust vents force components to work harder, which raises operating temperatures and shortens hardware life.

How to avoid hot spots and blocked vents

Dense cable bundles near equipment vents trap heat and restrict airflow. Route bundles along the sides of your rack and inspect periodically to confirm every vent stays clear.

3. Control cable length, bend radius, and strain relief

Physical cable management extends beyond routing. Cable length, bend radius, and strain relief directly affect signal quality and how easy your rack is to work in. Getting these details right reinforces every other server room cabling best practice you follow.

How to pick the right patch cord length

Use the shortest patch cord that reaches comfortably without pulling taut. Excess slack piles up inside racks and restricts airflow. Measure each run carefully and order patch cords in standard increments to keep your inventory simple and consistent.

How to maintain bend radius for copper and fiber

Every cable has a minimum bend radius defined by the manufacturer. Copper patch cables typically require a bend radius of four times the cable diameter, while fiber is far less forgiving. Tight bends on fiber crush internal strands and cause signal loss that standard testing may not detect right away.

Violating bend radius specifications voids manufacturer warranties and degrades performance before any visible damage appears.

How to add strain relief at ports and PDUs

Attach strain relief brackets or cable anchors near patch panel ports and PDU connections. These fittings absorb tension before it reaches the connector, protecting both the port and the cable jacket from premature wear.

How to avoid sharp edges and abrasion points

Route cables away from rack frame edges and exposed screw heads. Sharp contact points gradually wear through jackets and create short circuits or ground faults that are difficult to trace.

How to secure bundles without damaging jackets

Use hook-and-loop fasteners instead of zip ties when bundling cables. Overtightened zip ties compress the internal pairs inside copper cables, which degrades signal integrity across the entire link.

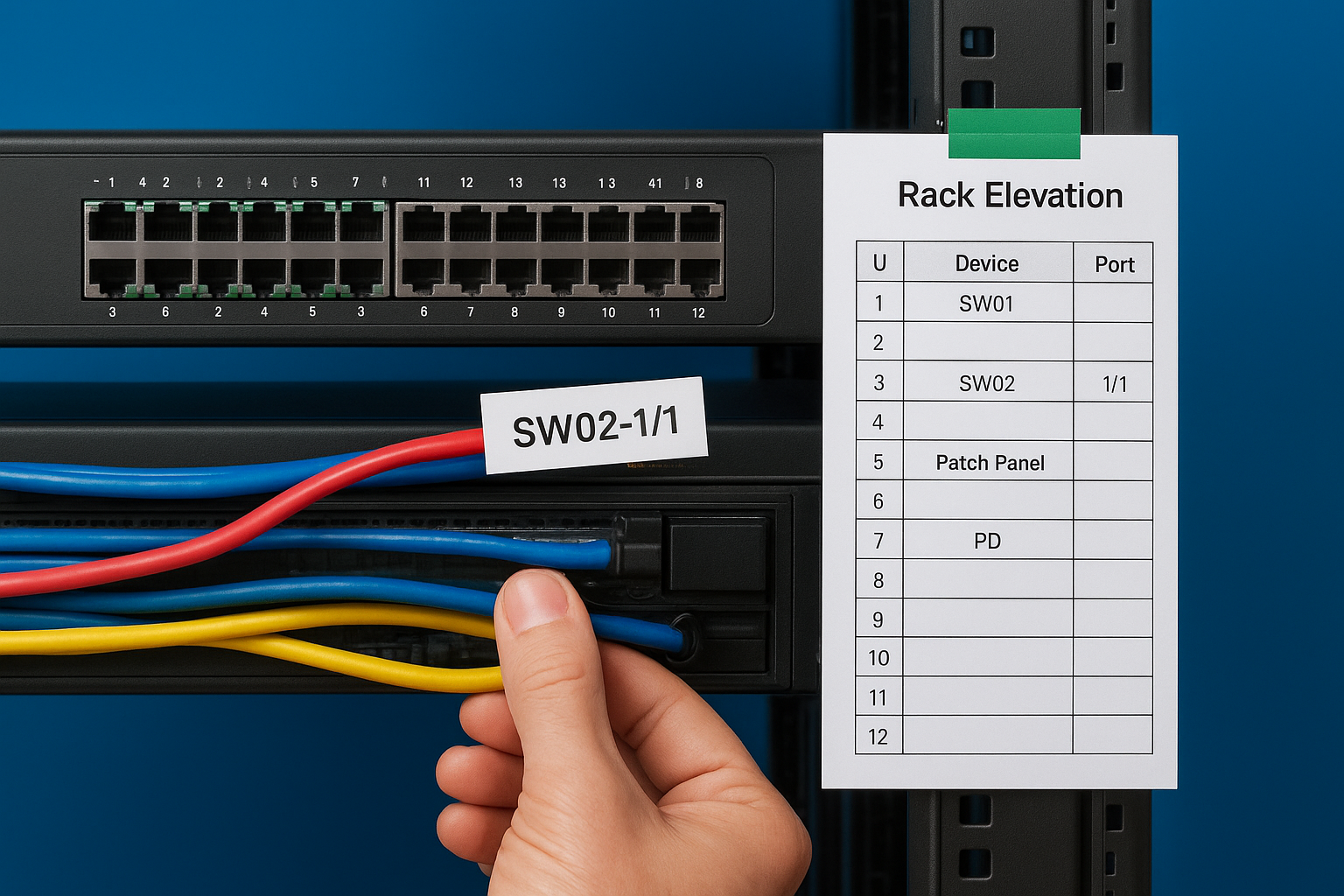

4. Label, color-code, and document everything

Labels and documentation separate a maintainable server room from a guessing game. Consistent labeling and accurate records let any technician work confidently in your rack without relying on memory or tribal knowledge.

What to label on both ends of every cable

Label every cable at both the source and destination ends. A label on only one end creates confusion the moment a cable gets unplugged. Use heat-shrink or self-laminating labels that hold up in warm rack environments.

How to set a naming convention that scales

Define a clear naming convention before you label anything. Include location, rack number, and port reference so the system grows without becoming ambiguous as your infrastructure expands.

A naming convention applied inconsistently is nearly as unhelpful as having no convention at all.

How to use color strategically without confusion

Assign cable colors to specific functions, such as blue for workstation data, red for management, and yellow for fiber. Limit the total number of colors so staff can memorize the scheme without a reference card every time they open a rack.

What to capture in rack elevations and port maps

Record rack unit positions, port assignments, and cable destinations in a rack elevation diagram. This is one of the most practical server room cabling best practices you can maintain, giving every technician a clear picture of what lives where.

How to keep documentation current after changes

Update your records immediately after every move, add, or change. Stale documentation is worse than none because it actively misleads the next technician who relies on it.

5. Standardize parts, testing, and upkeep

Standardization turns a well-built rack into a maintainable one. When your cable types, test procedures, and upkeep routines follow a consistent standard, any technician can work in your infrastructure without guesswork. This step ties together every other server room cabling best practice in this list.

What cable types and ratings to standardize on

Pick one cable category for your data runs and stick with it across the entire installation. Mixing Cat6 and Cat6A introduces inconsistencies and complicates future upgrades.

Your power cables should carry appropriate ratings for the load they serve. Standardizing here also simplifies your spare parts inventory.

How to use patch panels to reduce rack chaos

Patch panels give you a fixed termination point for every horizontal run, keeping connections off your active equipment ports.

Centralizing terminations protects switch ports from wear and accidental disconnection during routine moves.

How to test terminations and certify links

Test every link after installation using a certified cable tester and document the results before the project closes out.

Certification records serve as proof of compliance for regulated environments like hospitals and government facilities.

Failed tests skipped at install become intermittent problems that are costly to trace later.

How to enforce change control for moves, adds, and changes

Require written approval before any cable move, add, or change gets made in the rack.

This habit prevents undocumented changes from creating discrepancies between your physical infrastructure and your records.

How to run quick inspections that keep racks clean

Schedule brief monthly walk-throughs to confirm labels are intact, bundles are secure, and vents stay clear.

Catching small issues early keeps your maintenance workload low and stops minor problems from compounding into larger ones.

Wrap-up and next steps

Following server room cabling best practices comes down to five core habits: plan before you install, separate power from data, control cable length and bend radius, label and document everything, and standardize your parts and testing. Each of these steps builds on the others, so skipping one creates a gap that shows up during troubleshooting or expansion.

Your server room is a long-term investment, and the decisions you make during installation shape how easy or difficult that room is to manage for years to come. A clean, organized rack reduces downtime, speeds up maintenance, and protects the hardware running your operations.

If your project involves healthcare, commercial, or government facilities, getting the design right from the start matters even more. Trindom Global’s structured cabling and infrastructure services are built to help organizations plan, install, and maintain reliable cabling systems that perform under real-world demands. Reach out to start a conversation about your project.

The post Server Room Cabling Best Practices: 5 Tips For Clean Racks appeared first on Trindom Global.

The stakes are especially high in environments like hospitals, government facilities, and large commercial properties, where downtime or security gaps carry real consequences. A poorly designed network doesn’t just slow things down, it creates costly bottlenecks, compliance risks, and integration headaches that compound over time. That’s why the design phase matters more than most people realize, and why skipping it almost always costs more than investing in it upfront. At Trindom Global, we’ve seen this firsthand across hundreds of design-build and integration projects spanning healthcare, hospitality, government, and multifamily sectors.

This article breaks down the core principles of network infrastructure design, walks through the key steps involved, and covers the best practices that separate a functional network from one built to last.

Why network infrastructure design matters

Understanding what is network infrastructure design is only the first step. The harder question is why organizations should dedicate serious time and resources to it before laying a single cable or racking a single switch. The answer is direct: every decision you make downstream, from equipment selection to security policy, depends on the quality of your design. Skip this phase, and you build on assumptions instead of evidence.

Performance starts with planning

Network performance issues rarely appear out of nowhere. They trace back to design decisions made early in the project, such as placing bandwidth-heavy systems on undersized links, failing to account for traffic patterns, or neglecting redundancy at critical junctions. When you design the network with actual usage data and projected growth in mind, you give yourself a foundation that handles real-world demand instead of buckling under it.

That gap between theoretical capacity and actual performance is almost always a design problem, not a hardware problem. Throwing more equipment at a poorly structured network rarely fixes the underlying issue. It just adds cost and complexity on top of a flawed foundation.

Security is built in, not bolted on

A network designed without security in mind puts you in a reactive posture later. Retrofitting segmentation, access controls, and monitoring into a live network is significantly harder and more expensive than building those controls into the original architecture. This matters especially in regulated environments like healthcare and government, where compliance requirements such as HIPAA carry real penalties for gaps in network security.

A network you patch for security after the fact will always have more exposure than one designed with security as a core requirement.

Designing security into the architecture from the start means fewer vulnerabilities, fewer surprises during audits, and far less rework down the road.

Scalability saves money over time

Organizations rarely stay the same size. You add locations, users, devices, and services, and your network needs to absorb that growth without requiring a full rebuild. Poor scalability is one of the most common reasons organizations face expensive infrastructure overhauls just a few years after installation. A well-structured design accounts for future growth by building in logical segmentation, modular hardware choices, and capacity headroom that lets you expand without disrupting existing operations.

The upfront investment in thoughtful design consistently outperforms the cost of reactive fixes. When you take the time to understand your five-year growth trajectory before finalizing the design, you avoid the scenario where a new building, a hundred additional users, or a shift to cloud-heavy workloads forces you to rebuild infrastructure you just installed.

Core components of network infrastructure design

When you break down what is network infrastructure design, you’re really looking at a layered system where each component depends on the others working correctly. Understanding these components upfront gives you the clarity to make informed decisions, avoid costly gaps, and build a network that functions as a unified system rather than a collection of loosely connected parts.

Physical layer: hardware and cabling

The physical layer is the literal foundation of your network. It covers structured cabling, switching hardware, routers, wireless access points, and the physical pathways that carry data between devices. Decisions made here, such as cable category, rack placement, and redundant uplinks, directly affect how much bandwidth your network can sustain and how hard it is to troubleshoot or expand later. Poor physical design creates interference, bottlenecks, and maintenance nightmares that no software fix can resolve.

Logical layer: addressing and segmentation

Above the physical layer sits the logical architecture, which controls how traffic flows, how devices communicate, and how the network is segmented. This includes IP addressing schemes, VLANs, routing protocols, and DNS configuration. Proper segmentation keeps different types of traffic isolated, so a guest Wi-Fi network, for example, never touches your operational systems.

Logical segmentation is one of the highest-leverage decisions you make during the design phase because it affects both performance and security simultaneously.

Security and management layer

Every network needs a clearly defined security and management layer that controls access, monitors activity, and enforces policy. This includes firewalls, intrusion detection systems, access control lists, and network monitoring tools. Building this layer into the original design, rather than adding it after deployment, means your security posture is consistent and auditable from the first day the network goes live.

Principles behind secure, scalable network design

Knowing what is network infrastructure design conceptually is useful, but the principles that guide sound design decisions are what separate a network that holds up over time from one that creates problems the moment conditions change. These principles aren’t abstract theory. They’re practical guidelines that should shape every architecture decision you make, from your first site survey to your final documentation.

Build redundancy into critical paths

Redundancy means that no single point of failure can take down your entire network. For critical systems, such as hospitals or data centers, you need redundant uplinks, failover switching, and backup power at key junctions. A network that goes down when one component fails isn’t a resilient network, regardless of how well the rest of it performs.

Redundancy isn’t optional in environments where downtime has a direct cost to operations, patient care, or public safety.

Apply least privilege to every segment

Access control is most effective when you grant users and devices only the access they actually need, nothing more. This principle, called least privilege, limits the blast radius of a breach or misconfiguration. When you combine this with proper VLAN segmentation and role-based access policies, you make lateral movement across your network significantly harder for any unauthorized party.

Enforcing least privilege during the design phase also simplifies your audit process later. When access rights are baked into the architecture, you spend far less time reconciling who can reach what and why.

Account for growth before you need it

Your network should handle current traffic loads and anticipated expansion without requiring structural changes. Build in IP address space beyond immediate needs, select modular hardware with upgrade paths, and document your design so that adding capacity later is a planned process, not an emergency scramble.

How to design network infrastructure step by step

Understanding what is network infrastructure design in theory only gets you so far. Putting it into practice requires a structured sequence that moves from discovery through documentation before you install a single device. Skipping steps early in this process creates expensive problems that surface during deployment or, worse, after go-live when fixing them disrupts live operations.

Step 1: Assess your requirements and current state

Start by collecting detailed information about your environment, including user counts, device types, application dependencies, traffic patterns, and compliance requirements. Talk directly to the teams who use the network every day, not just IT leadership. This discovery phase surfaces constraints and dependencies that a scope document alone will never capture, and those gaps are exactly what cause rework later.

Key inputs to gather during assessment:

• Current bandwidth usage and peak demand windows
• Security and compliance mandates (such as HIPAA or FedRAMP, depending on your sector)
• Planned growth in users, locations, or connected devices over the next three to five years

Step 2: Design your architecture and document it completely

With solid requirements in hand, define your topology, segmentation strategy, hardware selection, and IP addressing scheme. Map how traffic flows between segments and identify where redundancy is necessary. Before installation begins, document every decision, covering cable runs, VLAN structure, routing choices, and security policies, so your team and all vendors are working from a single verified source of truth.

A complete design document reviewed before any installation begins catches conflicts on paper, where fixing them costs nothing.

Step 3: Implement in phases and validate at each stage

Deploy the network in controlled phases rather than all at once. Test performance and security against your original requirements at each phase before moving forward. When you find deviations from the planned design, update your as-built documentation immediately so your records accurately reflect the final installed state.

Common design patterns and real-world examples

When you understand what is network infrastructure design at a conceptual level, the next step is seeing how that understanding translates into actual architectures. Design patterns give you a proven starting point rather than building from scratch every time, and selecting the right pattern for your environment is one of the most consequential early decisions in the process.

Three-tier architecture

The three-tier model divides your network into core, distribution, and access layers, each with a defined role. The core layer handles high-speed data transfer between major network segments. The distribution layer enforces policy, routing, and segmentation. The access layer connects end devices. This pattern scales cleanly and remains one of the most widely deployed architectures in enterprise and healthcare environments because each layer can be upgraded or expanded independently without disrupting the others.

Three-tier architecture works because it separates function from scale, letting you grow one layer without rebuilding the entire network.

Healthcare systems use this pattern to isolate medical device networks from general staff traffic, which supports both performance and compliance requirements simultaneously.

Flat vs. segmented design in production environments

A flat network places all devices on a single broadcast domain with minimal logical separation. It’s common in small offices with low complexity, but it creates serious security and performance problems as your environment grows. Every device can reach every other device, which is exactly the condition that makes breaches spread quickly.

Segmented designs, by contrast, divide traffic into distinct zones based on function, device type, or security requirement. Hospitality networks are a practical example: guest Wi-Fi, back-of-house operations, and point-of-sale systems each occupy isolated segments, preventing a compromised guest device from reaching payment systems or property management platforms.

Putting your design into action

Understanding what is network infrastructure design gives you the foundation, but execution is where the outcomes are determined. Every principle covered in this article, from redundancy and segmentation to phased deployment, only delivers value when you apply it systematically and document every decision along the way. Skipping the planning phase doesn’t save time. It transfers that cost to the implementation and maintenance stages, where fixing mistakes is significantly harder and more expensive.

Your environment, whether a hospital, a government facility, or a large commercial property, has specific requirements that a generic approach won’t address. Working with a team that brings deep installation and integration experience means your design translates into a network that performs reliably from day one. If you’re ready to move from planning to execution, connect with Trindom Global’s design-build team to get expert guidance on your next infrastructure project.

The post What Is Network Infrastructure Design? Principles & Steps appeared first on Trindom Global.
